The Home Page and Menus

Your AVADO comes with a pre-installed operating system that you manage from a web page, the AVADO Admin. Open http://my.ava.do in your browser to see the Home page.

Home: your AVADO's health centre

Home answers one question first: is my AVADO healthy? It then shows what runs on it.

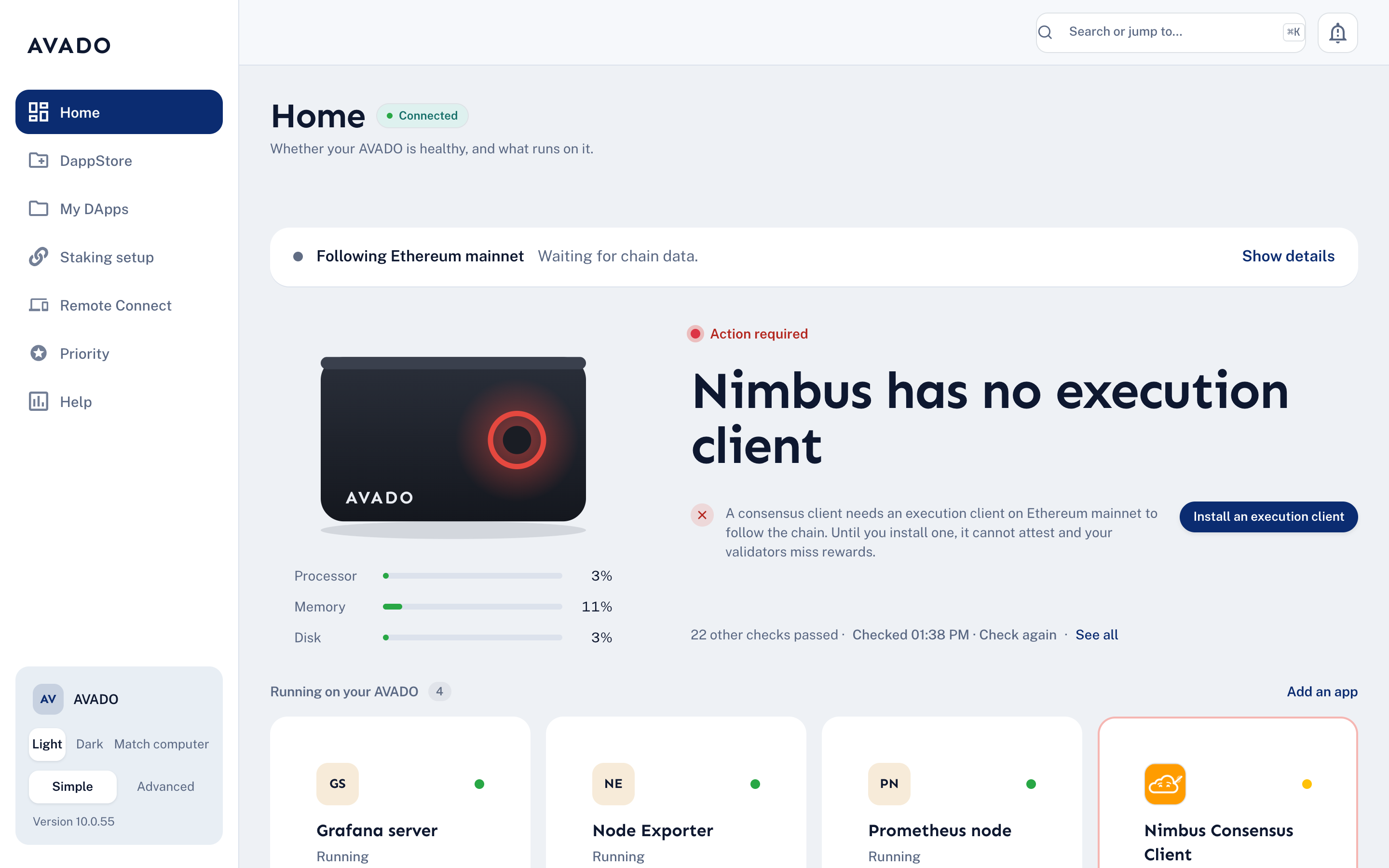

The Home page showing the chain status strip, the AVADO device with a red status light, gauges, a verdict and the app bays
The Home page. Here the verdict is "Action required" because a consensus client has no execution client.

From top to bottom:

Connected badge

Next to the Home title you see Connected (green) while your browser can talk to your AVADO. If it says Disconnected, see Connection Troubleshooting.

Chain status strip

If you run a consensus client, a strip at the top shows which chain your AVADO follows, for example Following Ethereum mainnet, with a short sentence:

  • … is in step with the network. All good.

  • … is syncing with the network. The client is still catching up. Validators can only attest once it is synced.

  • … is N slots behind. The client is falling behind. See Health checks explained.

  • … can't be reached. The Admin can't ask the client how far it has synced.

  • Waiting for chain data. The Admin has no data yet (for example just after a restart).

Click Show details to see the current epoch as a row of blocks (one per slot), whether the client is in step with the network or N slots behind, and how many peers it has. This detailed view needs the monitoring package. Without it you see "Install monitoring to see the chain strip." See Monitoring with Grafana. In Advanced mode the details are always open.

The AVADO device and its status light

The picture of your AVADO has a status light that matches the verdict next to it:

Light
Verdict
Meaning

Green

All good

No problems found.

Amber

Needs attention

Something should be fixed soon, but your AVADO is still working.

Red

Action required

Something needs fixing now, for example your validators could be missing rewards.

Grey

Checking

The Admin is still loading and checking your AVADO.

Gauges

Under the device, three gauges show how busy your AVADO is: Processor, Memory and Disk. Each bar turns amber and then red as it fills up (for disk: amber from 80%, red from 90%).

The verdict and fix buttons

To the right is the verdict in plain language:

  • When everything is fine, it says Your AVADO is healthy.

  • Otherwise the headline is the most important problem, for example Nimbus has no execution client. Under it you see why it matters and a fix button (for example Install an execution client) that takes you straight to the fix.

Other problems are listed below the headline, most urgent first. Each one has its own button. Tips you don't need can be hidden with Hide.

At the bottom of the verdict you see how many other checks passed and when the last check ran. Click Check again to re-run the checks, or See all to go to the Help page.

For the full list of checks and what to do about each one, see Health checks explained.

Running on your AVADO

The bottom of Home shows a card (an "app bay") for each app you installed, with its status, for example Running or Needs setup. A coloured dot shows its state at a glance, and a card with a problem gets a coloured border. Click a card to open the app. Click Add an app to go to the DappStore.

If you haven't installed anything yet, you see Your AVADO is ready with buttons for Staking setup and the DappStore.

DappStore

The DappStore is where you install apps (also called "DApps" or "packages"), such as Ethereum clients, MEV-Boost or monitoring.

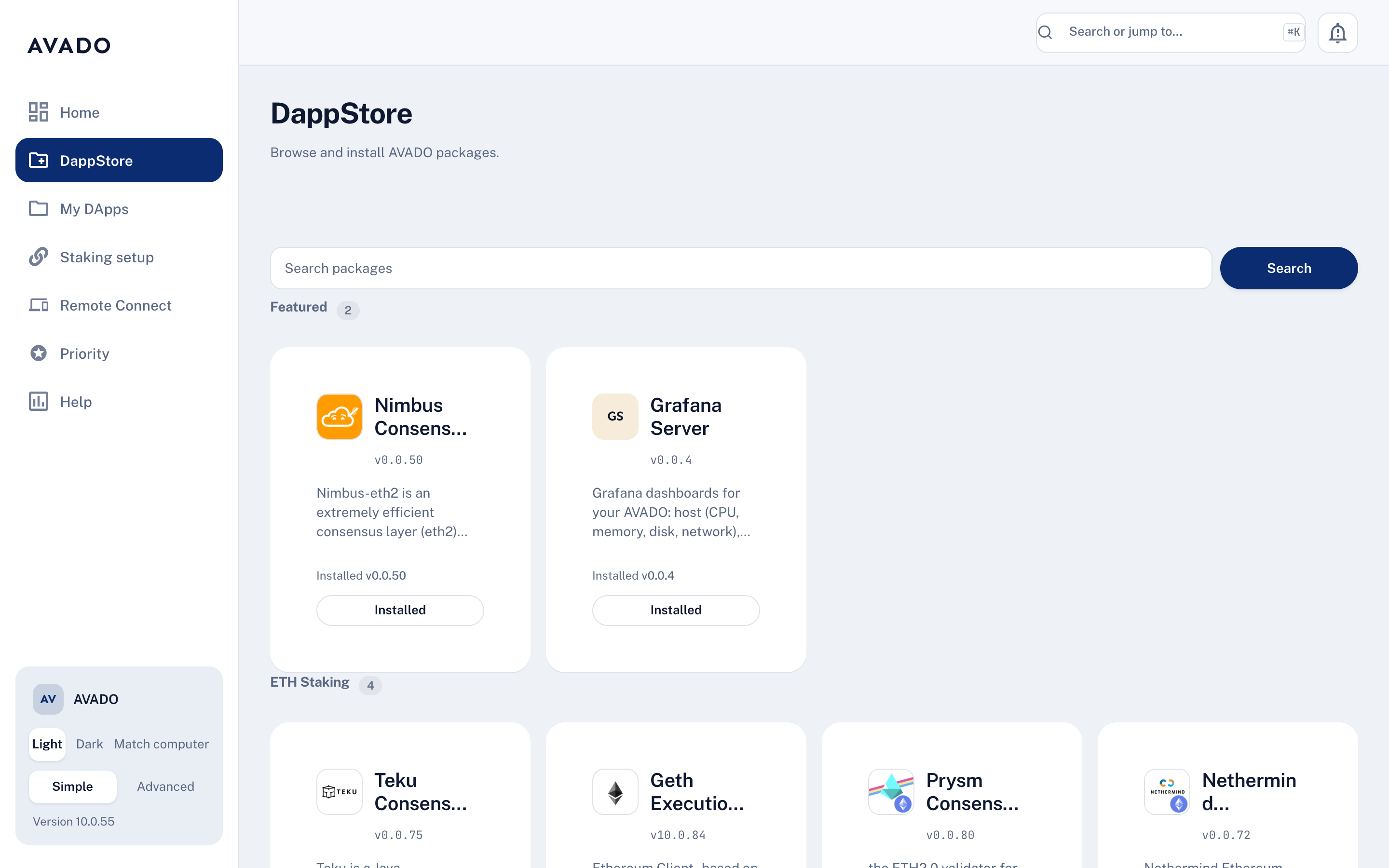

The DappStore with a search box, Featured apps and the ETH Staking category
The DappStore.
  • Use Search packages to find an app by name.

  • Apps are grouped in categories such as Featured and ETH Staking.

  • Each card shows the app's name, its AVADO package version (for example v0.0.50) and a short description. If the app is installed you also see the installed version.

  • The button on each card shows what you can do: Install, Update to v… when a newer version is available, or Installed.

Click a card to see its details: the latest version, the software version it is Based on, its size and release date. From there you can install it, or Manage package if it is already installed.

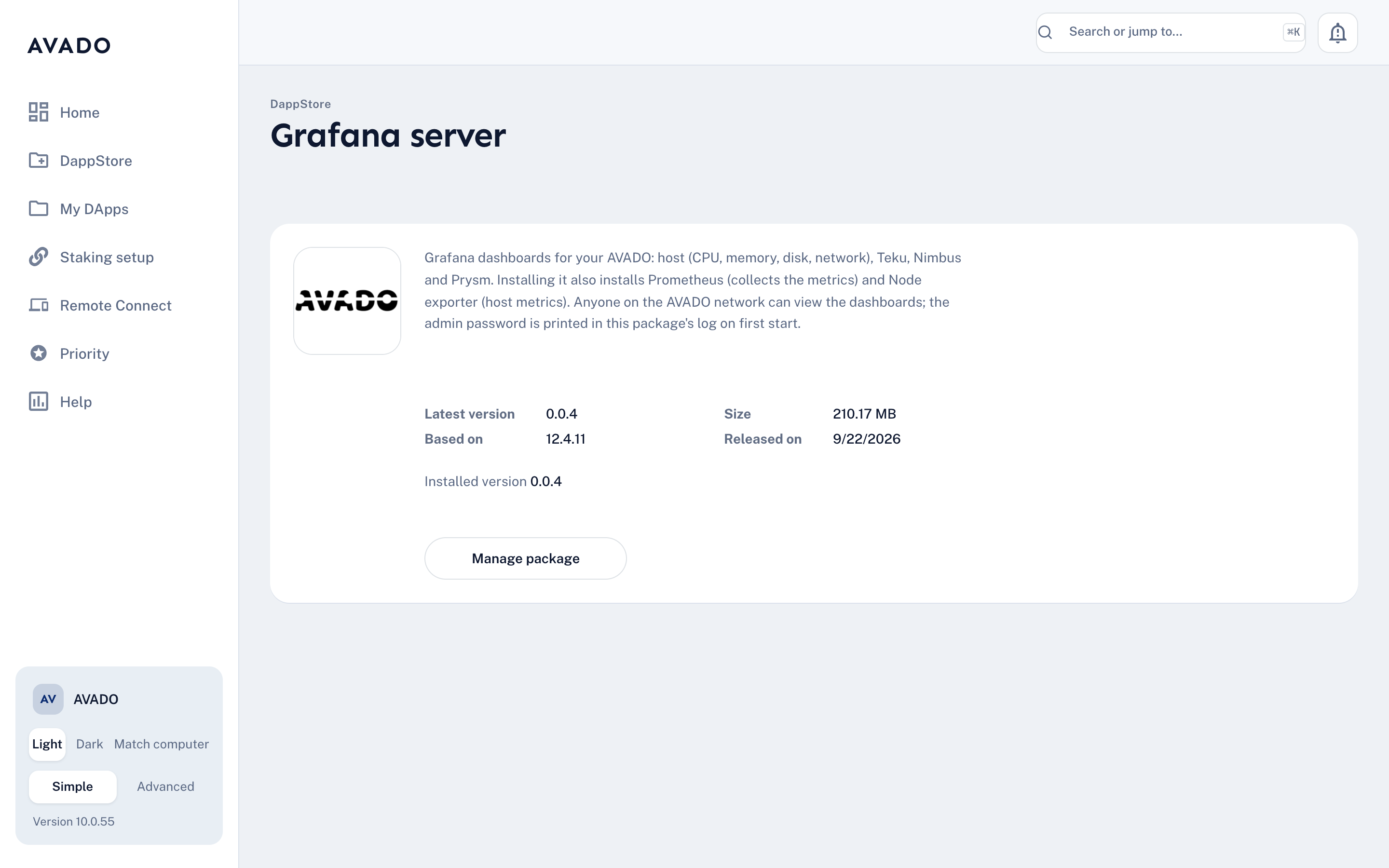

The DappStore detail page of the Grafana server package
A package's detail page in the DappStore.

In Simple mode the DappStore hides categories most people don't need, such as testnets, "The Lab", AVADO system packages and packages being phased out. Switch to Advanced mode to see every category, or to install a package from an IPFS hash.

My DApps

My DApps lists the apps you installed.

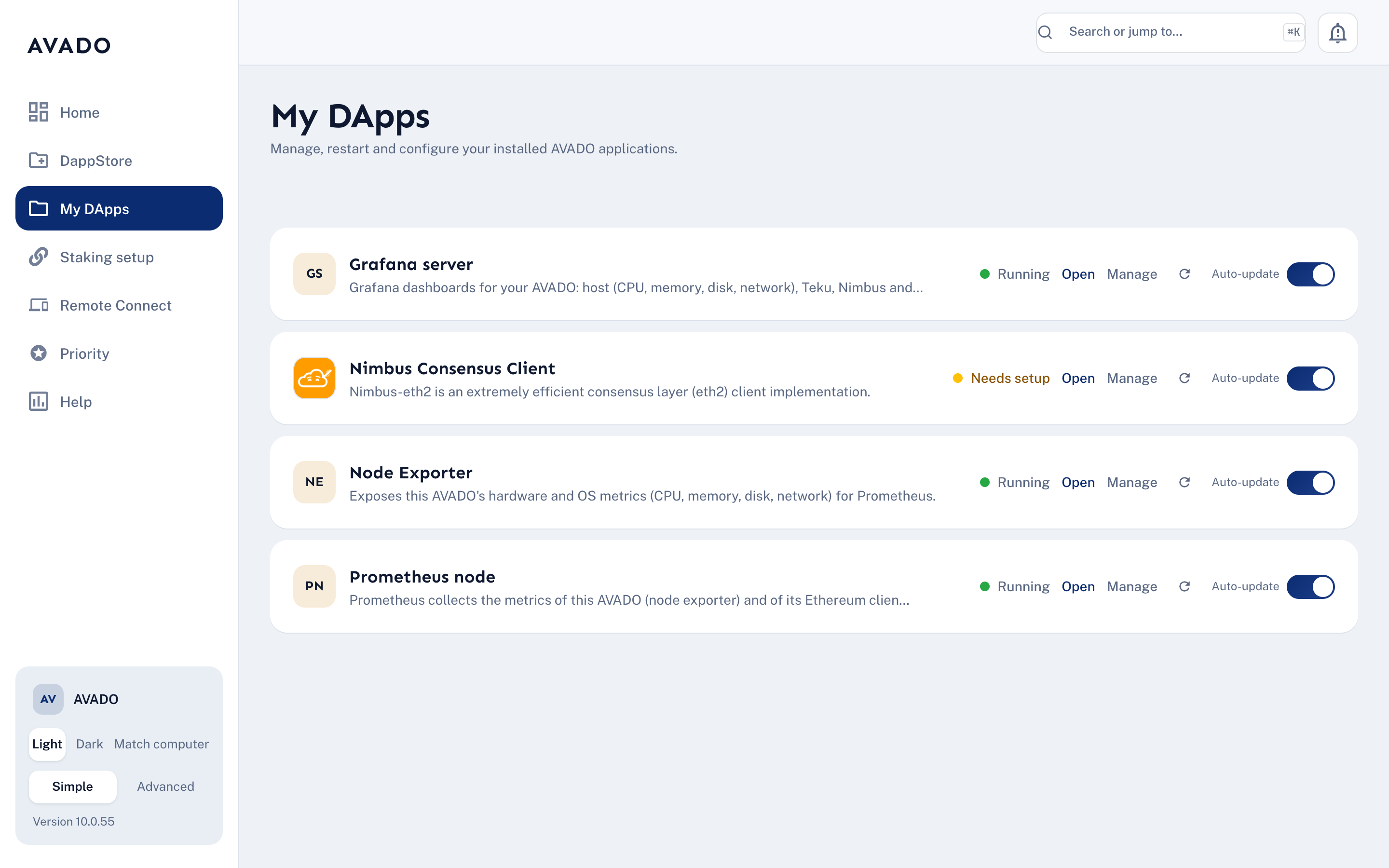

The My DApps list with status, Open, Manage, restart and Auto-update for each app
My DApps.

For each app you see:

  • Status, for example Running or Needs setup.

  • Open: opens the app's own screen, if it has one.

  • Manage: opens the app's page in the Admin, where you can set it up, restart it, read its logs and more. See The DApp Management Page.

  • Restart (the circular arrow): restarts the app.

  • Auto-update: keep this switched on. AVADO then installs updates for the app automatically. This matters most for clients, which must be updated before network upgrades.

Staking setup

Staking setup lists everything a validator needs, in order, and ticks off the steps you have done:

  1. Install an execution client

  2. Install a consensus client

  3. Import your validator keys

  4. Set your fee recipient

  5. Add MEV-Boost (optional)

  6. Add monitoring (optional)

Each step has a button that takes you to the right place. The Admin detects the install steps by itself. For importing keys and setting the fee recipient, tick I've done this once you have finished.

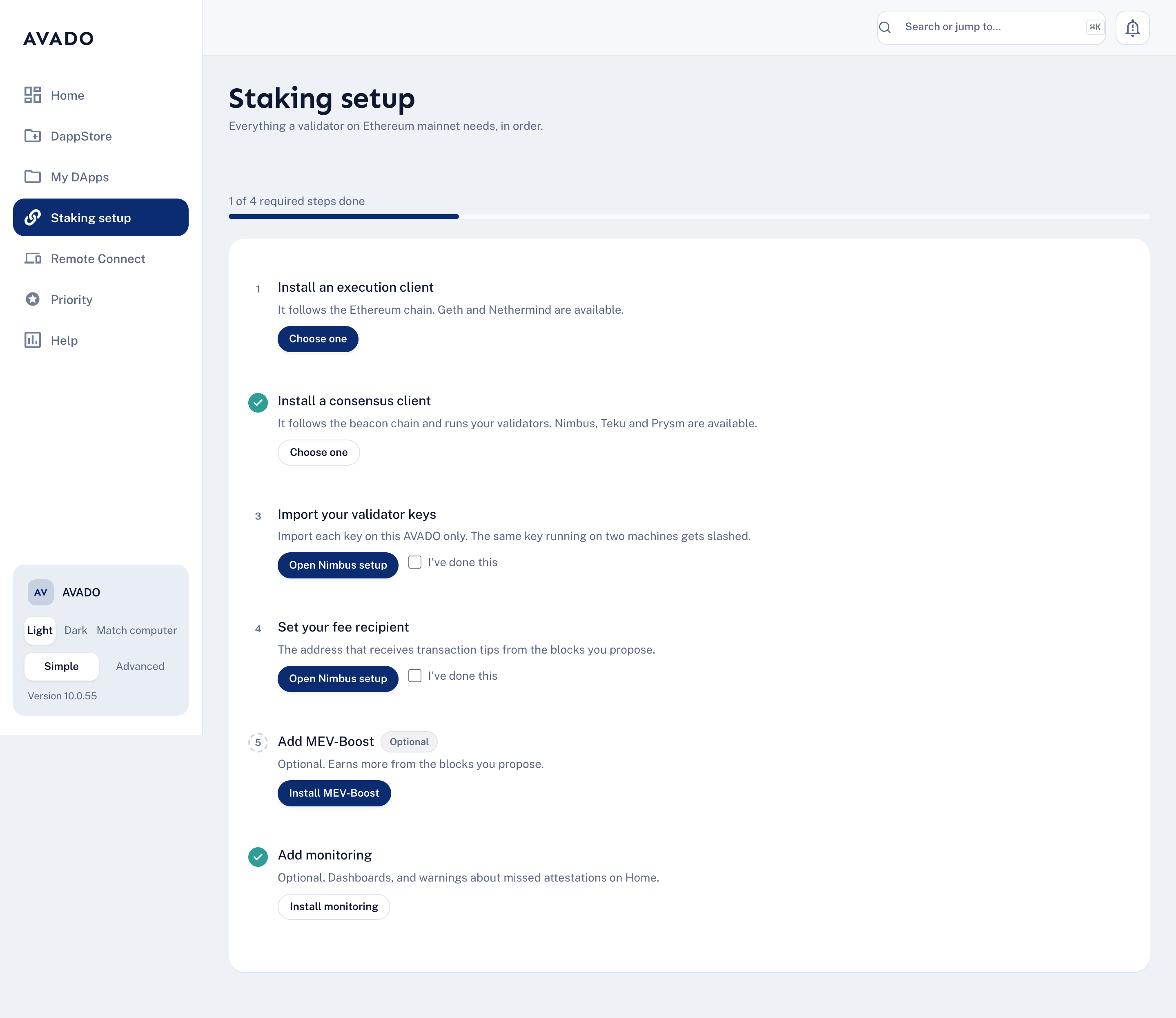

The Staking setup page with six numbered steps
Staking setup shows your progress, for example "1 of 4 required steps done".

For the full walkthrough, see Setting up the ETH Clients.

Remote Connect

Remote Connect lets you reach your AVADO securely from anywhere, using the ZeroTier app on your devices. The menu item appears once the Remote Connect package is installed. See Set up Remote Connect + ZeroTier.

Priority

Priority is where you subscribe to Priority Care (AVADO keeps an eye on your box and helps you first), turn on email alerts and manage your subscription. See Priority Care.

Help

Help groups common problems into topics, lets you download a diagnostics report for support, and links to the docs and community. See Help and troubleshooting in the Admin.

System

System is only shown in Advanced mode. It has four tabs:

  • Overview: the core packages that keep your AVADO running, and maintenance buttons: Reboot my AVADO, Disk cleanup and Shutdown.

  • Updates: app updates and AVADO system updates.

  • Storage: how much disk space each app uses.

  • History: a log of installs, updates and other changes.

See Updates, storage and history.

Reboot my AVADO / Shutdown

Use these buttons to restart or shut down your AVADO cleanly. They stop all packages properly first. After a shutdown, press the power button to start the box again.

Whenever possible, don't press the power button or unplug your AVADO to shut it down. Use Shutdown in System instead.

Disk cleanup

Disk cleanup removes left-over data from packages you removed, and frees that space. It never touches data of packages that are still installed.
